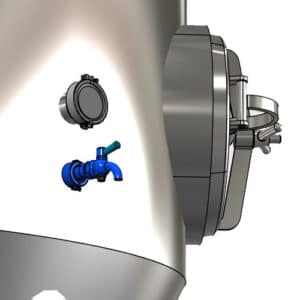

SV1 – Vzorkovací ventil je rozšiřující příslušenství CCT-M modulárních cylindrokónických tanků.
Kulový ventil DN8 pro odběr vzorků nápoje sanitovatelný, připojený spojením TriClamp DN10 na armaturu ST základního tanku.
Ceník armatur SV1 :
NTC-SVK-10 : Sample valve for tanks TriClamp DN25 1.5″ / Stainless steel
Price: 123 €
Sample valve with connection TriClamp 1,5" (Disc with diameter of 50.5 mm). Designed as accessory for the Nano cylindroconical tanks.
HBA-SCK-22 : Sampling cock type 2 DN20 DIN 11851 / Stainless steel
Price: 29 €
The sampling cock NW20 / DN20 type 2 for tasting of beer, cider, wine for use with simplified stainless steel pressure fermenting / maturating tanks.

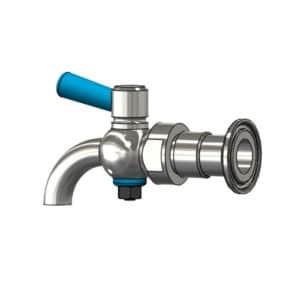

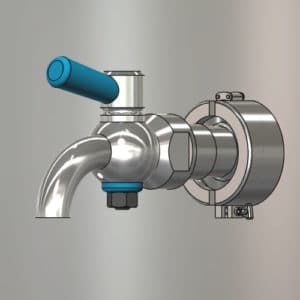

MTS-SV1-DN8TC : Sampling valve sanitizable DN8TC
Price: 59 €
MTS-SV1-DN8TC Sampling valve sanitizable DN8 TC is an extension equipment to the product sample taking during the fermantation-maturation process in the tank. Connection : Side connection (to tank SV port TriClamp) DIN 32676 “Tri Clamp” ⌀34 mm DN 8 / NW 8. The sampling valve is equipped with the hole for easy sanitizing .
HBA-SCK-21 : Sampling cock type 1 DN20 DIN 11851 / Stainless steel
Price: 81 €
The sampling cock NW20 type 1 for tasting of beer, cider, wine for use with simplified stainless steel pressure fermenting / maturating tanks.
TEA-STN-DN10 : Sampling tap DN10 for tanks / Stainless steel
Price: 138 €
Sampling cap with cap nut DN10 (also NW10 DIN 11851). Flame resistant. With connection thread for connecting of knuckle spiral . For use with pressure tanks. Order number 83922.
HBA-SCK-01: Sampling cock type 1 DN10 DIN 11851 / Stainless steel
Price: 55 €
The sampling cock NW10 type 1 for tasting of beer, cider, wine for use with simplified stainless steel pressure fermenting / maturating tanks.
HBA-SSP-01 : Sampling spiral (compatible with the TEA-STN-DN10 sampling valve)
Price: 110 €
The sampling spiral for reducing of foam during the tasting of beer with the sampling valve. It is designed for use with simplified stainless steel pressure fermenting / maturating tanks and the sampling cock type 2. Pipe connection : G 3/8" Female thread.
Diagram umístění rozšiřujících armatur modulárního systému CCT-M
Rozšiřující armatury jsou volitelným příslušenstvím pro základní tanky. Nastrojením základního tanku vhodnou kombinací rozšiřujících armatur se dosáhne požadované konfigurace modulárního tanku podle požadovaného účelu.
