CS2 – Přípojná boční sanitační armatura

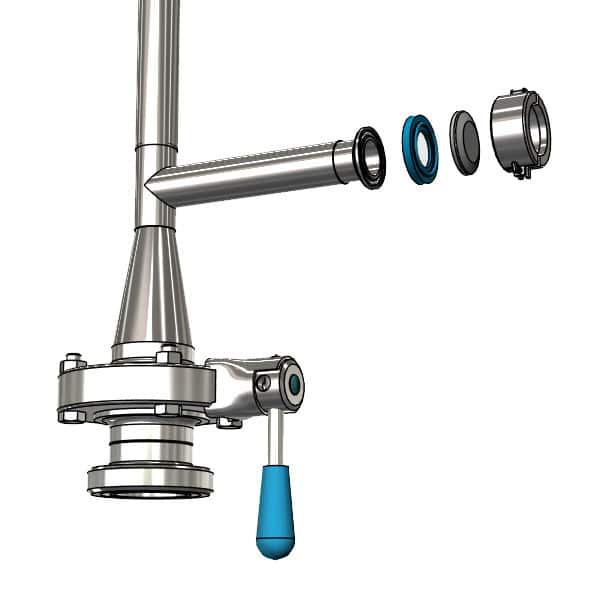

CS2 – Přípojná boční sanitační armatura je rozšiřující příslušenství CCT-M modulárních cylindrokónických tanků. Armatura se připojuje na CS1 horní sanitační armaturu , anebo se k ní připojuje až za díl LIS sestava stavoznaku , je vybavená motýlovou klapkou, ukončená je hrdlem TriClamp pro připojení hradicího přístroje a  hrdlem  TriClamp (nebo mlékárenským šroubením) pro připojení sanitačního vedení (hadice).






Ceník armatur CS2 :

  • MTS-CS2-DN2525TD Side sanitizing pipe DN25TC/DN25DC

    Cena: 4 568 Kč

    MTS-CS2-DN2525TD Side sanitizing pipe DN25TC/DN25DC is an extension fitting for the sanitizing, cleaning, pressurizing and for connection of other optional parts to the tank (CS1, LIS, RV1 parts). Main function is the  connecting the tank to the sanitizing equipment (CIP), fill level indicator, relief valve with manometer. Connections : Upper connection (to CS1 pipe) DIN 32676 “Tri Clamp”  ⌀50.5mm DN 25 / NW 25, side connection (to RV1 relief valve with manometer) DIN 32676 “Tri Clamp”  ⌀50.5mm DN 25 / NW 25,

  • MTS-CS2-DN2525TT Side sanitizing pipe DN25TC/DN25TC

    Cena: 5 081 Kč

    MTS-CS2-DN2525TT Side sanitizing pipe DN25TC/DN25TC is an extension fitting for the sanitizing, cleaning, pressurizing and for connection of other optional parts to the tank (CS1, LIS, RV1 parts). Main function is the  connecting the tank to the sanitizing equipment (CIP), fill level indicator, relief valve with manometer. Connections : Upper connection (to CS1 pipe) DIN 32676 “Tri Clamp”  ⌀50.5mm DN 25 / NW 25, side connection (to RV1 relief valve with manometer) DIN 32676 “Tri Clamp”  ⌀50.5mm DN 25 / NW 25,

  • MTS-CS2-DN2532TD Side sanitizing pipe DN25TC/DN32DC

    Cena: 5 243 Kč

    MTS-CS2-DN2532TD Side sanitizing pipe DN25TC/DN32DC is an extension fitting for the sanitizing, cleaning, pressurizing and for connection of other optional parts to the tank (CS1, LIS, RV1 parts). Main function is the  connecting the tank to the sanitizing equipment (CIP), fill level indicator, relief valve with manometer. Connections : Upper connection (to CS1 pipe) DIN 32676 “Tri Clamp”  ⌀50.5mm DN 25 / NW 25, side connection (to RV1 relief valve with manometer) DIN 32676 “Tri Clamp”  ⌀50.5mm DN 25 / NW 25,

  • MTS-CS2-DN2540TD Side sanitizing pipe DN25TC/DN40DC

    Cena: 5 622 Kč

    MTS-CS2-DN2540TD Side sanitizing pipe DN25TC/DN40DC is an extension fitting for the sanitizing, cleaning, pressurizing and for connection of other optional parts to the tank (CS1, LIS, RV1 parts). Main function is the connecting the tank to the sanitizing equipment (CIP), fill level indicator, relief valve with manometer. Connections : Upper connection (to CS1 pipe) DIN 32676 “Tri Clamp” ⌀50.5mm DN 25 / NW 25, side connection (to RV1 relief valve with manometer) DIN 32676 “Tri Clamp” ⌀50.5mm DN 25 /

  • MTS-CS2-DN2532TT Side sanitizing pipe DN25TC/DN32TC

    Cena: 5 757 Kč

    MTS-CS2-DN2532TT Side sanitizing pipe DN25TC/DN32TC is an extension fitting for the sanitizing, cleaning, pressurizing and for connection of other optional parts to the tank (CS1, LIS, RV1 parts). Main function is the  connecting the tank to the sanitizing equipment (CIP), fill level indicator, relief valve with manometer. Connections : Upper connection (to CS1 pipe) DIN 32676 “Tri Clamp”  ⌀50.5mm DN 25 / NW 25, side connection (to RV1 relief valve with manometer) DIN 32676 “Tri Clamp”  ⌀50.5mm DN 25 / NW 25,

  • MTS-CS2-DN2550TD Side sanitizing pipe DN25TC/DN50DC

    Cena: 6 108 Kč

    MTS-CS2-DN2550TD Side sanitizing pipe DN25TC/DN50DC is an extension fitting for the sanitizing, cleaning, pressurizing and for connection of other optional parts to the tank (CS1, LIS, RV1 parts). Main function is the connecting the tank to the sanitizing equipment (CIP), fill level indicator, relief valve with manometer. Connections : Upper connection (to CS1 pipe) DIN 32676 “Tri Clamp” ⌀50.5mm DN 25 / NW 25, side connection (to RV1 relief valve with manometer) DIN 32676 “Tri Clamp” ⌀50.5mm DN 25 /

  • MTS-CS2-DN2540TT Side sanitizing pipe DN25TC/DN40TC

    Cena: 6 135 Kč

    MTS-CS2-DN2540TT Side sanitizing pipe DN25TC/DN40TC is an extension fitting for the sanitizing, cleaning, pressurizing and for connection of other optional parts to the tank (CS1, LIS, RV1 parts). Main function is the connecting the tank to the sanitizing equipment (CIP), fill level indicator, relief valve with manometer. Connections : Upper connection (to CS1 pipe) DIN 32676 “Tri Clamp” ⌀50.5mm DN 25 / NW 25, side connection (to RV1 relief valve with manometer) DIN 32676 “Tri Clamp” ⌀50.5mm DN 25 /

  • MTS-CS2-DN2550TT Side sanitizing pipe DN25TC/DN50TC

    Cena: 6 649 Kč

    MTS-CS2-DN2550TT Side sanitizing pipe DN25TC/DN50TC is an extension fitting for the sanitizing, cleaning, pressurizing and for connection of other optional parts to the tank (CS1, LIS, RV1 parts). Main function is the connecting the tank to the sanitizing equipment (CIP), fill level indicator, relief valve with manometer. Connections : Upper connection (to CS1 pipe) DIN 32676 “Tri Clamp” ⌀50.5mm DN 25 / NW 25, side connection (to RV1 relief valve with manometer) DIN 32676 “Tri Clamp” ⌀50.5mm DN 25 /



Diagram umístění rozšiřujících armatur modulárního systému CCT-M

Rozšiřující armatury jsou volitelným příslušenstvím pro základní tanky. Nastrojením základního tanku vhodnou kombinací rozšiřujících armatur se dosáhne požadované konfigurace modulárního tanku podle požadovaného účelu.

stavebnicove-cct-schema-03


Více informací o systému CCT-M : Obecný popis modulárních CK tanků
